At Corden Perimeter Systems, we supply Securifor 3D mesh fencing systems designed to deliver high levels of perimeter security while maintaining a clean and professional appearance.

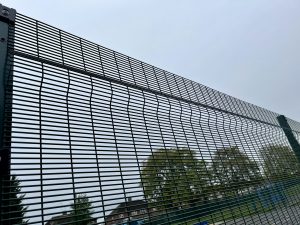

Securifor 3D is a welded mesh panel system incorporating horizontal V-shaped beams to increase panel strength and rigidity. The system combines anti-climb and anti-cut properties with excellent visibility, making it suitable for sites where both security and surveillance are essential.
The mesh design is engineered to be finger and toe-proof, reducing the risk of climbing while still allowing clear visibility through the fence for CCTV and monitoring systems.
Panels and posts are supplied pre-galvanised and finished with a polyester powder coating. Standard colour is Green RAL 6005, with other colours available on request.
Why choose Corden Perimeter Systems?
Corden Perimeter Systems has been supplying steel fencing and perimeter security systems since 1918, supporting contractors, specifiers, and local authorities across the Midlands and the UK.
We offer extensive product knowledge, flexible manufacturing capabilities, and reliable UK-wide distribution to support projects of all sizes.
Request a quote
For more information about our Securifor 3D mesh fencing systems or to discuss your project requirements, contact Corden Perimeter Systems today.
Features of Securifor 3D fencing
Securifor 3D mesh fencing is designed to progvide high-security performance with long-term durability.
Key features of Securifor 3D fencing include:
- Anti-climb and anti-cut mesh design
- Finger and toe proof apertures
- 4mm wire construction for strength and rigidity
- Pressed V-beams to reinforce panel structure
- Excellent visibility for CCTV and monitoring
- High resistance to vandalism and damage
- Polyester powder coated finish for corrosion protection
Specifications
Securifor 3D fencing is manufactured to deliver consistent performance and high levels of security.
- Panel width: 2518.6mm
- Mesh aperture: 76.2mm x 12.7mm
- Horizontal wire diameter: 4mm
- Heavy welded mesh panels with horizontal V-folds
- Manufactured from pre-galvanised wire (minimum 25g/m²)
- Polyester powder coating with minimum thickness of 100 microns
Available panel sizes
- 2000mm height: 2518.6 x 2010.6mm panels with 2 V-folds
- 2400mm height: 2518.6 x 2417.0mm panels with 3 V-folds
- 3000mm height: 2518.6 x 3001.2mm panels with 3 V-folds
Post and fixing systems
Securifor 3D fencing is available with a choice of post and fixing systems depending on project requirements.
Securifor rectangular posts
- 60 x 60 x 1.5mm or 80 x 60 x 2.5mm depending on application
- Supplied with plastic caps
- Single row of M8 threaded inserts
- Panels fixed using spider fixators or full-length cover plates
- Secured with one-way anti-tamper bolts
Bekafix Ultra posts
- 70 x 44mm H-section steel posts
- Hooked plastic cap design
- Enhanced coating and steel strength for corrosive environments or taller fences
- Panels fixed using metal fixators
Gates
Securifor 3D systems can be supplied with matching gates incorporating the same high-security mesh infill.
Options include:
- Single leaf gates
- Double leaf gates
- Sliding gates
Typical applications

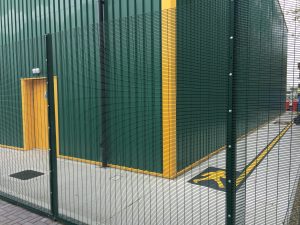

Securifor 3D mesh fencing is widely used where a higher level of perimeter security is required.
Common applications include:
- Industrial and commercial sites
- Infrastructure and transport projects
- Utilities and energy sites
- Public sector and institutional buildings
- High-security environments
Complementary perimeter security products
Securifor 3D fencing can be combined with other systems to create a complete perimeter solution, including:
- High-security gates and access control
- Palisade fencing systems
- Chain link fencing
- Barbed wire or razor wire deterrents
- Electronic detection systems
| Assortment Securifor 3D | |||||||
| Panels | Posts | ||||||
| Fence Height mm | Height x Width mm | Number of Beams | Section mm | Overall Length mm | Number of fixings | ||
| Intermediate | Corner | End | |||||
| 2000 | 2000 x 2515 | 2 | 80 x 60 x 2 | 2700 | 6 | 12 | 6 |
| 2400 | 2400 x 2515 | 3 | 80 x 60 x 2 | 3100 | 7 | 14 | 7 |
| 3000 | 3000 x 2515 | 3 | 80 x 80 x 2.5 | 3800 | 10 | 20 | 10 |
