At Corden Perimeter Systems, we supply Cordguard twin wire panel systems designed to provide strong, durable, and cost-effective perimeter security for a wide range of applications across the UK.

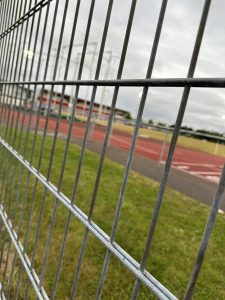

Cordguard twin wire fencing, also known as 868 mesh fencing, is manufactured from 6mm vertical wires welded between twin 8mm horizontal wires, creating a rigid and highly secure mesh panel. This construction provides increased strength and resistance to damage, making it suitable for both security and boundary applications.
Panels and posts are supplied pre-galvanised and polyester powder-coated, with standard finishes in Green RAL 6005 and Black RAL 9005. Other colours are available on request to suit project requirements.
Why choose Corden Perimeter Systems?
Corden Perimeter Systems has been supplying steel fencing and perimeter security systems since 1918, supporting contractors, specifiers, and local authorities across the Midlands and the UK.
We offer extensive product knowledge, flexible manufacturing capabilities, and reliable UK-wide distribution to support projects of all sizes.
Request a quote
For more information about our Cordguard twin wire panel systems or to discuss your project requirements, contact Corden Perimeter Systems today.
Features of Cordguard twin wire fencing
Cordguard twin wire 868 fencing is designed to deliver strength, durability, and long-term performance.
Key features include:
- 6mm vertical wires with twin 8mm horizontal wires for enhanced rigidity
- Welded mesh construction providing a strong and stable panel
- Available with fixing brackets or full height clamp bar systems for higher security
- Secured using M8 x 40mm anti-tamper Fortress bolts
- Pre-galvanised and polyester powder-coated for corrosion resistance
- Clean, open mesh design allowing clear visibility for monitoring
This system provides a highly effective and rigid defence against intrusion while maintaining a professional appearance.
Specifications
Cordguard twin wire fencing is manufactured to meet recognised industry standards and ensure long-term durability.
- Manufactured from galvanised wire to BS EN 10244-2 Class D (minimum 40g/m²)
- Panels are pre-treated with a conversion layer to improve corrosion resistance
- Polyester powder coating applied to enhance durability and finish
- Powder coating meets BS EN 13438:2005 and BS 1722-16:2009 requirements
Post specification
- 60 x 60 x 1.5mm SHS steel posts
- Pre-galvanised to DIN EN 10346:2015
- Powder coated finish in Green RAL 6005 or Black RAL 9005
- Other RAL colours available on request
- Average powder coating thickness of 80 microns
- Supplied with M8 rivet-nuts to suit M8 x 40mm Fortress bolts
Typical applications
Cordguard twin wire fencing panels are widely used across the UK for both security and boundary definition.
Common applications include:
- Schools and educational facilities
- Commercial premises and business parks
- Sports facilities and recreational areas
- Infrastructure and transport projects
- Residential developments
Its strength, durability, and visibility make it suitable for a wide range of environments.
Complementary perimeter security products
Cordguard twin wire fencing can be combined with other perimeter systems to create a complete solution, including:
| Cordguard Twin Wire 868, 656 | |||||||
| Panels | Posts | ||||||
| Fence Height mm | Height x Width mm | Number of beams per panel | Section mm | Overall Length mm | Number of fixings | ||
| Intermediate | Corner | End | |||||
| 1200 | 1230×2500 | 0 (flat panel) | 60 x 60 x 1.5 | 1800 | 4 | 8 | 4 |
| 1830 | 1830×2500 | 0 (flat panel) | 60 x 60 x 1.5 | 2500 | 5 | 10 | 5 |
| 2000 | 2030×2500 | 0 (flat panel) | 60 x 60 x 1.5 | 2700 | 6 | 12 | 6 |
| 2400 | 2430×2500 | 0 (flat panel) | 60 x 60 x 1.5 | 3100 | 7 | 14 | 7 |
