Cordguard Anti-Climb



Description
Features
Applications

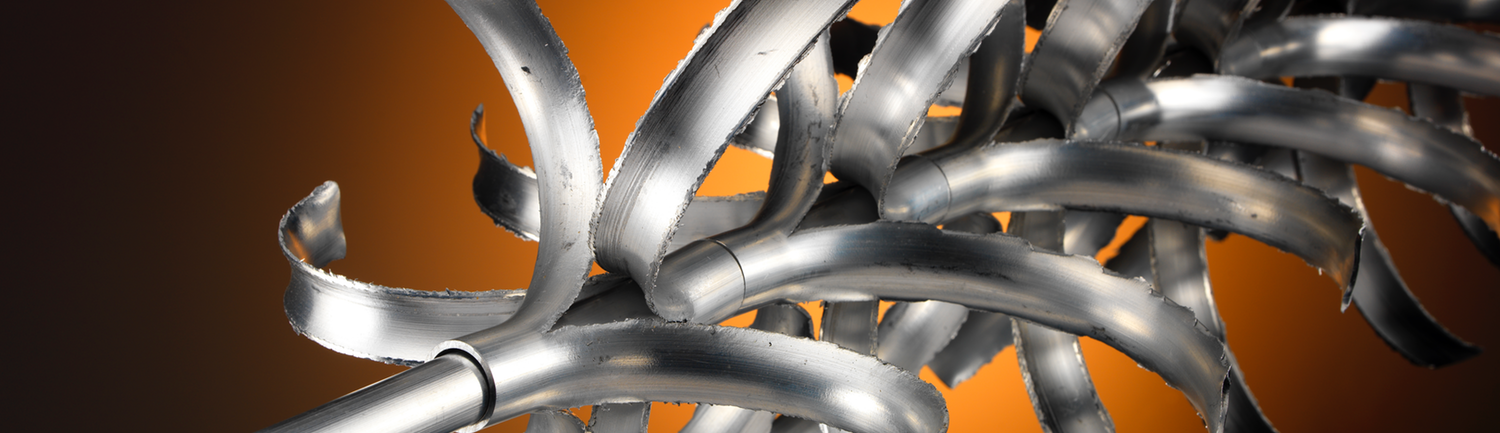

A freely rotating anti-scaling security obstacle manufactured from high tensile alloy tube and assembled to form six vanes per element.

Cordguard Anti-Climb can either be bolted to walls using expandable through bolts or clamped or welded to fences and gates. Stanchions should be adjusted to support Vandgard centrally over the wall or fence with a clearance not exceeding 50mm in order to eliminate any stable platform or foothold.

  • Aluminium vanes extruded alloy
  • BS6082 T4: OD 31.75mm x 2.5mm
  • Theoretical weight: 0.173Kg each
  • Overall diameter of assembled elements: approx 400mm
  • Colours: Natural, Polyester colour coated

All situations where serious vandalism or theft is likely and particularly where Public Liability legislation applies. Also in environmentally sensitive areas where an inoffensive appearance is important. Examples include cmmercial and industrial sites, schools, vehicle parking areas, domestic, sports and leisure areas.



Supports

Dimensions: 40mm x 8mm Mild steel or aluminium twice drilled to receive M8 fixing bolts.

Choice of finish to customer specification, natural, coated or galvanized.

Spindle: Extruded round tube, BS1471: 1986(BS6082), OD: 1 inch x 14 gauge (25mm x 2mm)
