The Stripe Panel System from Corden Perimeter Systems is a high-quality welded mesh fencing solution designed to provide a modern and secure perimeter. Developed as a Paladin Classic fencing alternative, the Stripe Panel System offers a similar recognisable mesh appearance while delivering excellent strength and long-term performance for commercial and public sector environments.
This welded mesh panel fencing system is popular across a wide range of applications due to its clean, structured design and strong welded construction. The panel layout creates a distinctive visual pattern similar to the well-known Paladin Classic style, making it an ideal choice for projects where customers are searching for a Paladin Classic fencing alternative that offers reliable UK supply and manufacturing standards.
Manufactured from galvanised steel wire and welded at every intersection, the Stripe Panel System provides excellent structural rigidity and resistance to impact. The wire configuration creates a balanced mesh profile that enhances strength while maintaining good visibility through the fence line. This makes the system suitable for both security and boundary definition where a professional appearance is important.
In addition to strength, the Stripe Panel System is designed with long-term corrosion protection in mind. Each panel undergoes a pre-treatment process before receiving a durable polyester powder coating, ensuring reliable performance in demanding outdoor environments.
For projects specifying Paladin Classic fencing, the Stripe Panel System provides a dependable Paladin Classic fencing alternative that delivers similar aesthetics with modern manufacturing standards.
Why choose Corden Perimeter Systems?
Corden Perimeter Systems has been supplying steel fencing and perimeter security solutions since 1918, supporting contractors, specifiers, and local authorities across the UK.
We offer expert product knowledge, flexible solutions, and reliable nationwide supply to support projects of all sizes.
Request a quote
For more information about our paladin classic fencing systems or to discuss your project requirements, contact Corden Perimeter Systems today.
Features of the Stripe Panel System
The Stripe Panel System offers a number of practical benefits that make it a strong alternative to traditional Paladin Classic panel fencing.
The welded mesh panels are manufactured from high-quality galvanised steel wire and welded at every intersection point. This construction method ensures excellent panel strength and structural stability across the full width of the fence.

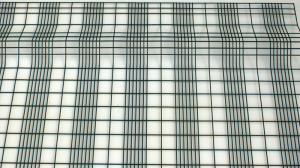

The carefully designed mesh layout creates a distinctive stripe pattern, offering a modern variation on the traditional Paladin Classic fencing style while maintaining the open appearance and visibility that welded mesh fencing is known for.
The panels are pre-treated and coated with a high-performance polyester powder coating system. This provides enhanced corrosion resistance and helps maintain the fence’s appearance in exposed outdoor environments such as industrial estates, education facilities and commercial premises.
In addition to durability, the system is designed for straightforward installation using robust square hollow section steel posts and secure bolt fixings. This ensures a reliable fence line with strong mechanical connections between panels and posts.
Key advantages of the Stripe Panel System include:
- Modern welded mesh fencing design similar to Paladin Classic
- Strong welded wire construction for improved panel rigidity
- Long-lasting galvanised steel with protective powder coating
- Clean, professional appearance suitable for commercial sites
- Reliable UK supply from Corden Perimeter Systems
- Straightforward installation with robust steel posts and secure fixings
As a Paladin Classic fencing alternative, the Stripe Panel System provides an effective balance of visual appeal and long-term perimeter protection.
Panel Specification
The Stripe Panel System is manufactured to high standards to ensure strength, consistency and long-term outdoor performance.
Wire configuration
- Nominal wire diameters: 5mm horizontal wires and 4mm vertical wires
- Welded at every intersection for maximum panel strength
- Wire pitch: 200mm horizontally and 45mm & 22mm vertically
- All measurements are centre of wire to centre of wire
Material and corrosion protection
- Manufactured from galvanised wire to BS EN 10244-2 Class D (minimum 40g/m²)
- Panels are pre-treated with a conversion layer to enhance corrosion resistance and improve adhesion of the polyester powder coating layer
Powder coating
Powder coatings meet the general requirements of BS EN 13438:2005 and BS 1722-16:2009
This multi-stage finishing process ensures the Stripe Panel System delivers long-term durability and weather resistance, making it a reliable Paladin Classic fencing alternative for demanding environments.
Post Specification
The Stripe Panel System is supported by robust steel posts designed for durability and secure installation.
- 60 x 60 x 1.5mm SHS steel posts
- Pre-galvanised to DIN EN 10346-2015
- Polyester powder-coated finish
- Standard colours: RAL 6005 Green and RAL 9005 Black
- Other RAL colours available on request
- Average powder coating thickness: 80 microns
Each post includes the required quantity of M8 rivet-nuts to allow secure installation using M8 x 40mm Fortress bolts, providing strong and reliable panel fixing across the fence line.
Typical applications include:
- Schools and education facilities
- Industrial units
- Commercial units
- Business parks
- Car showrooms
- General boundary fencing
- Commercial sites
- Ports, stations and airports
- Residential developments
- Colleges and training centresThe Stripe Panel System is suitable for a wide range of environments where secure perimeter fencing and a professional appearance are required. As a Paladin Classic fencing alternative, it is commonly specified for both public sector and commercial projects. Typical applications include:
Its open mesh design maintains visibility while providing effective perimeter control, making it particularly well-suited for locations where both security and appearance are important.
| Paladin Classic | |||||||
| Panels | Posts | ||||||
| Fence Height mm | Height x Width mm | Number of beams per panel | Section mm | Overall Length mm | Number of fixings | ||
| Intermediate | Corner | End | |||||
| 1200 | 1240×3025 | 2 | 60 x 60 x 1.5 | 1800 | 4 | 8 | 4 |
| 1800 | 1850×3025 | 2 | 60 x 60 x 1.5 | 2500 | 5 | 10 | 5 |
| 2000 | 2000×3025 | 3 | 60 x 60 x 1.5 | 2700 | 6 | 12 | 6 |
| 2400 | 2440×3025 | 3 | 60 x 60 x 1.5 | 3100 | 7 | 14 | 7 |
