Securifor 3D



Description
Features
Applications

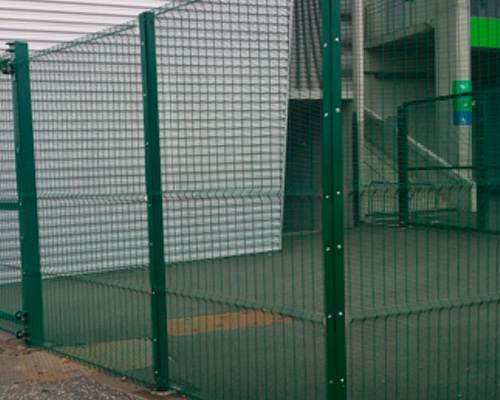

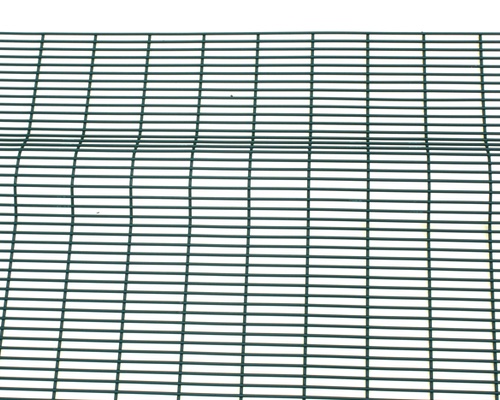

Securifor 3D Welded Mesh Security Panels incorporate a pressed V-beam combining an anti-climb and anti-cut fencing solution.

The design of this fencing system also incorporates excellent visibility and vandalism resistance making this a good option where there is a high-security fencing requirement.

  • Highly secure system due to large wire diameter (4mm) and restricted apertures (12.7 x 76.2mm)
  • Attractive design: pressed beam section creates a stronger panel with a more aesthetic appearance
  • Visibility: wide apertures provide clear through vision, important for camera surveillance
  • Available in heights ranging from 2000-3000mm panels. Standard panel width 2515mm
  • Security conforms to: category 2 (security); category 3 (high security) fences
  • Standard colours: Green RAL6005 and Black RAL9005, other colours are available on request
  • Schools
  • Commercial sites
  • Industrial sites
  • Railway boundaries
  • Hospitals
  • Recreation grounds




Assortment Securifor 3D
Panels Posts
Fence Height
mm
Height x Width
mm
Number of Beams Section
mm
Overall Length
mm
Number of fixings
Intermediate Corner End
2000 2000 x 2515 2 80 x 60 x 2 2700 6 12 6
2400 2400 x 2515 3 80 x 60 x 2 3100 7 14 7
3000 3000 x 2515 3 80 x 80 x 2.5 3800 10 20 10
