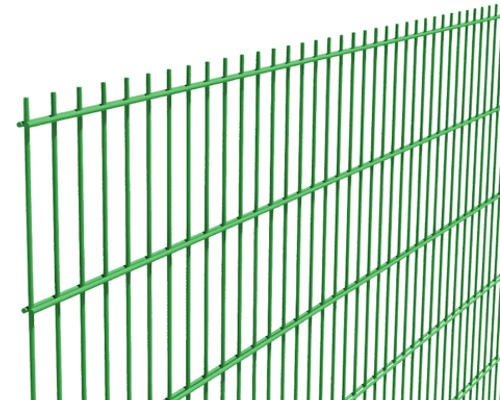

Cordguard Twin Wire Panel System

Description
Features
Applications

Cordguard Twin Wire 868 fencing panels are robust and rigid due to their double-diameter (8.00mm*) horizontal wires.

They have an elegant, simple design with a 22.0mm spike on the top edge of the panel to deter climbing (the panel can be inverted if spikes are not required).

Produced from galvanised wire to BS EN 10244-2:2001 class D.

* Nominal diameter after polyester coating.

  • 656/868 systems are particularly attractive due to the panels flat construction which is enabled by the secure double horizontal wires, one positioned on either side of the verticals.
  • The panels are extremely rigid due to the use of heavy welded mesh in conjunction with double horizontal wires.
  • 22.0mm spike on top edge of panel to deter climbing (panel can be inverted if spikes are not required)
  • Suitable for multi – lift installations
  • Range of heights available from 1030mm – 3030mm
  • Sports pitches
  • Commercial Sites
  • Schools
  • Railway Stations and Airports
  • Kindergartens
  • Residential Areas



Cordguard Twin Wire 868, 656
Panels Posts
Fence Height
mm
Height x Width
mm
Number of beams
per panel
Section
mm
Overall Length
mm
Number of fixings
Intermediate Corner End
1200 1230×2500 0 (flat panel) 60 x 60 x 1.5 1800 4 8 4
1830 1830×2500 0 (flat panel) 60 x 60 x 1.5 2500 5 10 5
2000 2030×2500 0 (flat panel) 60 x 60 x 1.5 2700 6 12 6
2400 2430×2500 0 (flat panel) 60 x 60 x 1.5 3100 7 14 7
