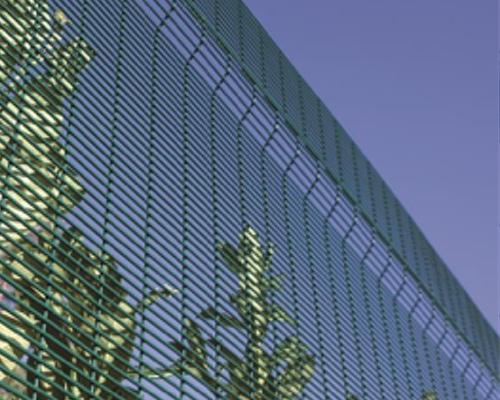

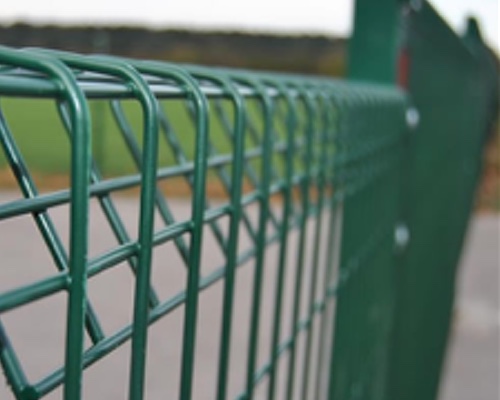

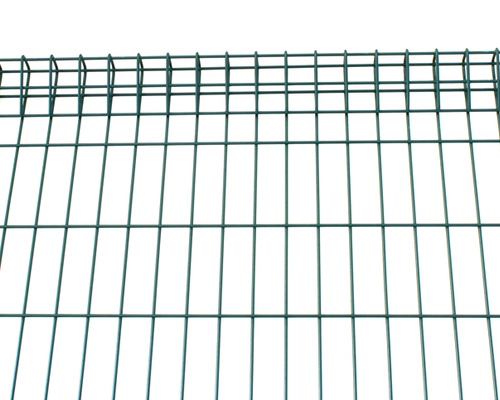

Cordguard Roll Top Fencing Panels



Description
Features
Applications
  • Triangular beams at the top & bottom of the panel offer extra rigidity
  • Spike-free panel design
  • 3.0m wide panels, reducing installation & post costs by up to 20% when compared to 2.50m wide panels
  • Range of heights available from 900mm to 2400mm
  • Produced from 5.00mm diameter Galvanised wire to BS EN 10244-2:2001 class D
  • Cut-outs on profiled section allow easy installation onto square box-section posts

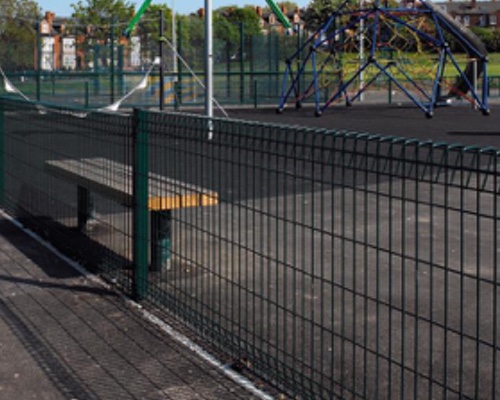

  • Schools & Nurseries
  • Play areas
  • Commercial & Industrial Sites
  • Residential Areas
  • Sports facilities
  • Retail areas
  • Pedestrian & Passenger demarcation

Roll Top
Panels Posts
Fence Height
mm
Height x Width
mm
Number of beams
per panel
Section
mm
Overall Length
mm
Number of fixings
Intermediate Corner End
900 900×3000 2 60 x 60 x 1.5 1500 3 6 3
1200 1200×3000 2 60 x 60 x 1.5 2500 4 8 4
15000 1500×3000 2 60 x 60 x 1.5 2700 5 10 5
1800 1800×3000 2 60 x 60 x 1.5 3100 6 12 6
