At Corden Perimeter Systems we supply Vandgard anti climb security systems designed to provide an effective and compliant solution for preventing unauthorised access across a wide range of sites.
Vandgard is a freely rotating anti-scaling barrier that removes any stable foothold for intruders. When pressure is applied, the system rotates, making climbing extremely difficult while acting as a strong visual deterrent.
Unlike traditional security toppings such as spikes or razor wire, Vandgard is designed to be non-injurious, making it suitable for environments where safety and public liability are key considerations.
Why choose Corden Perimeter Systems?
Corden Perimeter Systems has been supplying steel fencing and perimeter security solutions since 1918, supporting contractors, specifiers, and local authorities across the UK.
We offer expert product knowledge, flexible solutions, and reliable nationwide supply to support projects of all sizes.
Request a quote
For more information about Vandgard anti climb systems or to discuss your project requirements, contact Corden Perimeter Systems today.
Features of Vandgard anti climb security
Vandgard systems are designed to provide reliable, low-maintenance protection across a wide range of environments.
Key features include:
- Freely rotating design that prevents climbing
- Strong visual deterrent against intrusion and vandalism
- Non-injurious system suitable for public-facing environments
- Manufactured from high tensile alloy materials
- Suitable for installation on fences, walls, gates, and structures
- Easy to install with a range of fixing methods
- Available in natural or polyester powder-coated finishes
Specifications
Vandgard is engineered for durability, performance, and long-term reliability.
Construction

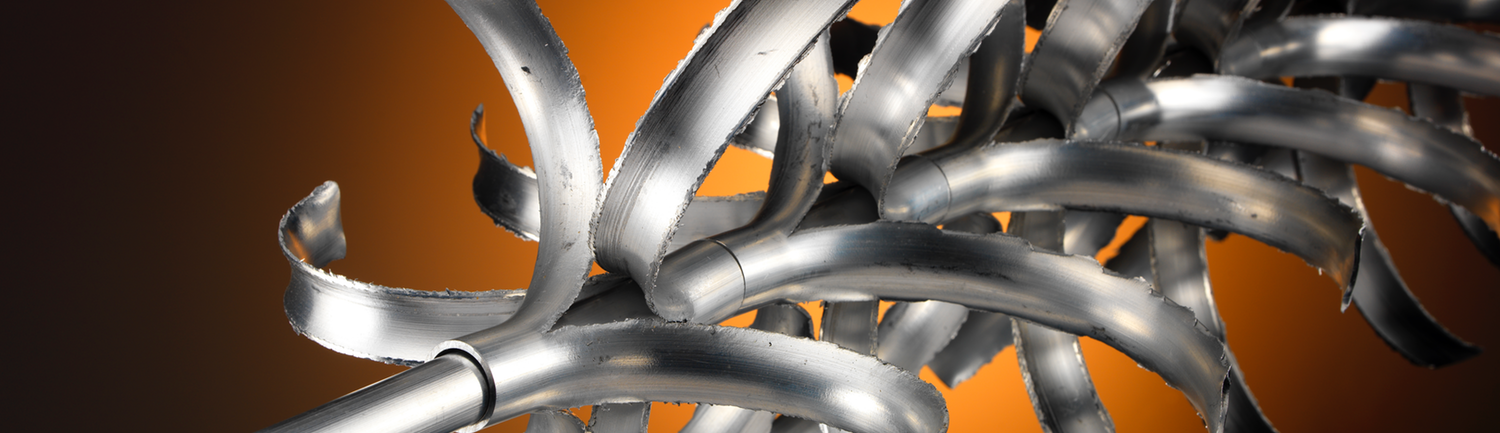

- Freely rotating anti-scaling system with six vanes per element
- Manufactured from high tensile alloy tube
Vanes
- Extruded aluminium alloy (BS6082 T4)
- Diameter: 31.75mm x 2.5mm
- Theoretical weight: 0.173kg each
Overall dimensions
- Approximate overall diameter: 400mm
Spindle
- Extruded round tube to BS1471:1986 (BS6082)
- Size: 25mm x 2mm (1 inch x 14 gauge)
Supports
- Dimensions: 40mm x 8mm
- Manufactured from mild steel or aluminium
- Drilled to accommodate M8 fixing bolts
- Available in natural, galvanised, or coated finishes
Installation and fixing
Vandgard can be installed across a wide range of structures and perimeter systems.
- Can be bolted to walls using expandable through bolts
- Can be clamped or welded to fences and gates
- Stanchions should be positioned centrally with a maximum 50mm clearance to eliminate footholds

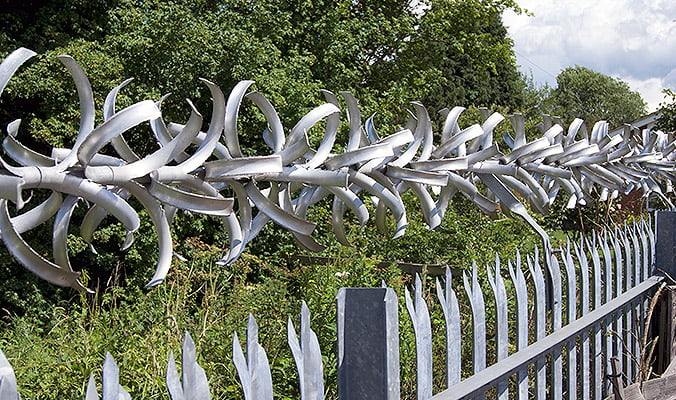

Palisade fence installation
Vandgard is commonly installed on steel palisade fencing to enhance perimeter security.
- Mounted to the rear (non-attack face) of the fence
- Installed on cranked 45° support brackets
- Combined with triple point pales to create a highly effective anti-climb barrier
- Support brackets spaced approximately 2 metres apart
- 300mm overhang recommended at fence ends to prevent climbing access
- Corner protection achieved using 90° spacers
This configuration provides an extremely effective deterrent against intrusion.
Typical applications
Vandgard is suitable for a wide range of environments where security is required without compromising safety or appearance.
Common applications include:
- Industrial and commercial sites
- Schools and educational facilities
- Car parks and storage yards
- Residential developments
- Sports and leisure facilities
It is particularly suitable for locations where public liability legislation applies or where a less aggressive security solution is required.
Vandgard vs razor wire vs spikes
Different anti-climb systems offer varying levels of security and safety depending on the application.
Vandgard anti climb system
Provides a rotating barrier that prevents climbing without causing injury. Ideal for public-facing environments where safety and compliance are important.
Razor wire
Offers a high level of security and deterrence but is aggressive in appearance and can pose a risk of injury. Typically used in high-security or restricted-access environments.
Security spikes
Provide a visual deterrent and basic anti-climb protection. Suitable for lower-risk applications but offer less resistance compared to rotating or high-security systems.
Choosing the right system depends on the level of security required, site conditions, and safety considerations.
Complementary perimeter security products
Vandgard can be used alongside other perimeter systems to create a complete solution, including:
