Roller Barrier Universal Bracket



Description
Bespoke Options


The Universal Bracket is the most versatile in the Roller Barrier range and very popular with installers.

The Roller Barrier Universal Bracket is one of the most popular mounting brackets, used to support the Roller Cup bearing Central Shaft.

It is one of our stock range of brackets, available for immediate shipping to customers around the world.

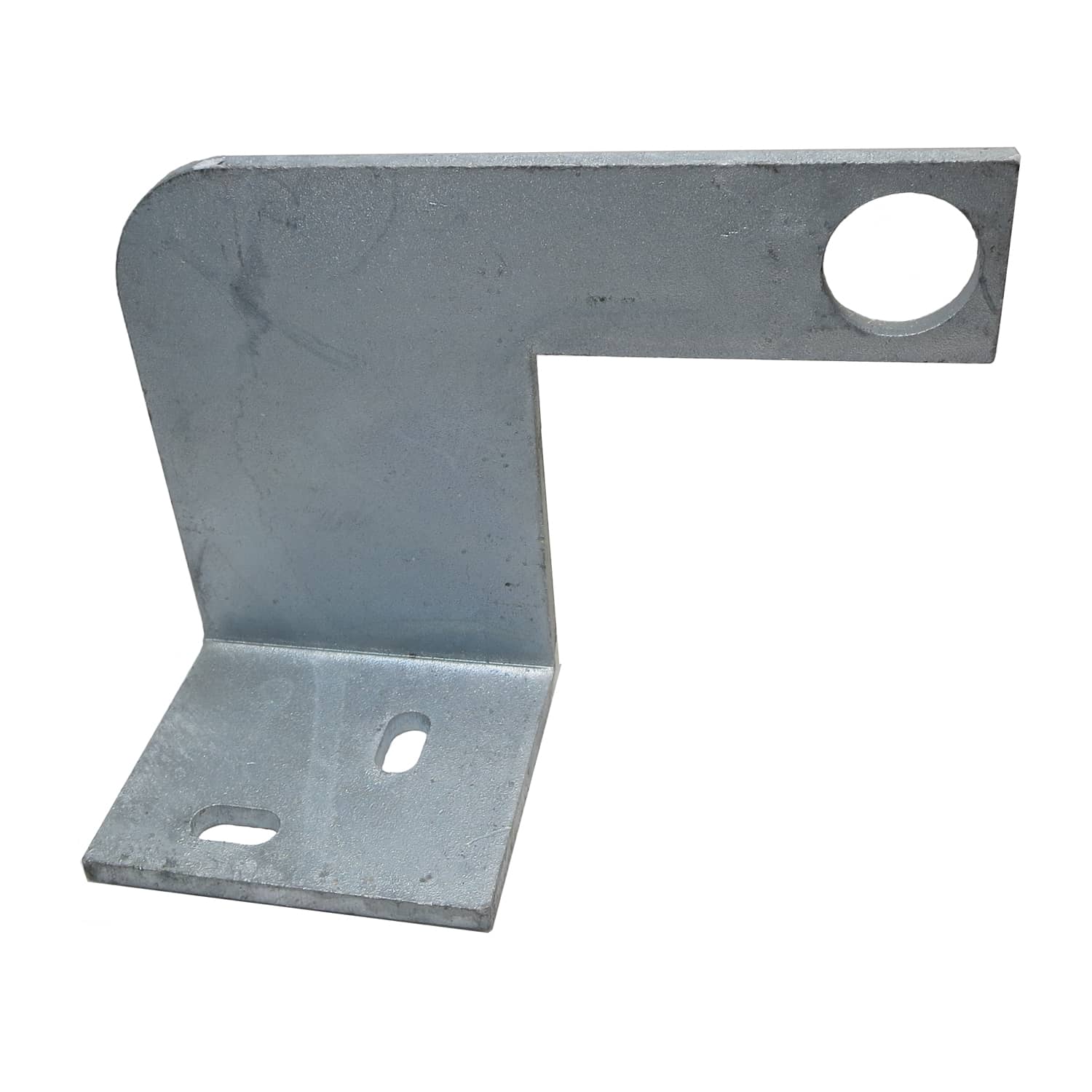

This stock bracket is manufactured from cut and formed 6mm steel sheet and features a galvanised finish for weather protection.

These versatile brackets can be fixed to many types of wall, gate or fence, and can be top fixed or face fixed. When face fixed, the bracket can be installed to position the cup above or below the bracket, depending on which way up the bracket is installed.

The fixing plate section of the bracket, features two 10 x 20mm fixing slots which make 8mm screws or bolts such as our Atlas Multi-Purpose Bolts ideal fixings for attaching the bracket to a wide range of materials or surfaces from concrete, brick and masonry to timber.

Whilst stock brackets are as described above, we are able to offer various bespoke options to special order, such as double row brackets, manufacturing brackets from Stainless Steel material, overpainting brackets in any standard RAL colour, or designing bespoke brackets to meet specific needs for the installation site.

Please contact us, to discuss any bespoke requirement or if you would like help or guidance with your installation or product choice.
