R13/120/8 – Horse Fence



Product Description
R13/120/8 horse fence has pre-stripped ends for ease of joining. It features solid vertical wires, close vertical wire spacings to help prevent damage to hooves, and the unobtrusive high pressure bonded Torus knot which does not have any sharp edges. Tornado Torus Stock Fence is manufactured with high tensile wire which strains tighter than mild steel and so requires fewer intermediate posts, making it quicker to erect. It does not stretch with weathering so does not need to be retightened annually.

Specification

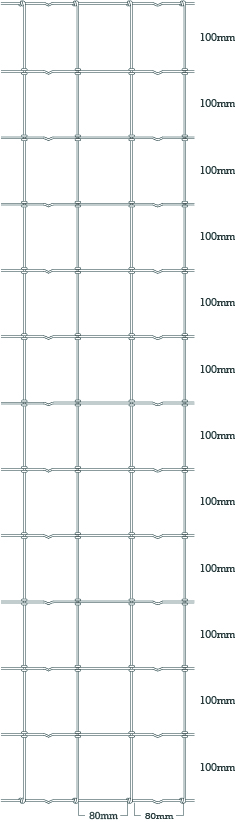

No. of Line Wires13
Overall Height (cm)120
Distance between stay wires (cm)8
Top & bottom line wire speciication2.5mm dia – 1235-1390 N/mm2
Intermediate line wire speciication2.5mm dia – 1235-1390 N/mm2
Vertical stay wire speciication2.5mm dia – 695-850 N/mm2
Average Weight per 50 Metre Roll (kg)65
Material CompositionHeavily galvanised HT steel wire

Installation Guidelines

A straining post is required at every major change in direction or any termination and should be supported by a strut or box assembly. Netting should be tied off on the straining posts by hand or with suitable joiners. When tensioning the fence the ‘crimp’ in the net should be reduced by approx: 50%. Avoid driving staples tight against the wire as this will damage the galvanised coating

Compliance with British and European Standards

  • BSEN 10218 – Steel Wire and Wire Products part 2 – General Wire Dimensions and Tolerances
  • BSEN 10223 – Steel Wire and Wire Products for Fencing and Netting part 5 – Steel Wire Woven Hinged Joint and Knotted Mesh Fencing
  • BSEN 10244 – Steel Wire and Wire Products Non-ferrous Metallic Coatings on Steel Wire part 2 – Zinc or Zinc Alloy Coatings (all Tornado products galvanised to class A)
