Product Description
HT15/158/8 is ideal for use along highways or areas where badger movements need to be restricted; the closely spaced vertical stay wires help prevent badgers from pushing through the fence. It can also be installed on post and rail fencing or used as embankment netting. Tornado HT Badger Fence is manufactured with high tensile wire which strains tighter than mild steel and so requires fewer intermediate posts, making it quicker to erect. It does not stretch with weathering so does not need to be retightened annually. Tornado Badger fencing meets Highways Agency specifications H46 and H47.
Specification

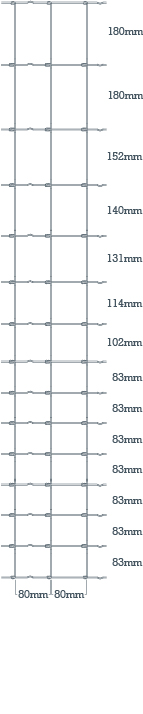

| No. of Line Wires | 15 |
| Overall Height (cm) | 158 |
| Distance between stay wires (cm) | 8 |
| Top & bottom line wire speciication | 2.5mm dia – 1235-1390 N/mm2 |
| Intermediate line wire speciication | 2.5mm dia – 1235-1390 N/mm2 |
| Vertical stay wire speciication | 2.5mm dia – 695-850 N/mm2 |
| Average Weight per 50 Metre Roll (kg) | 87.86 |
| Material Composition | Heavily galvanised steel wire |
Installation Guidelines
A straining post is required at every major change in direction or any termination and should be supported by a strut or box assembly. Netting should be tied off on the straining posts by hand or with suitable joiners. When tensioning the fence the ‘crimp’ in the net should be reduced by approx: 50%. Avoid driving staples tight against the wire as this will damage the galvanised coating. Two strands of barbed wire or a single electrified wire can be added to the top of the fence. The bottom 600mm can be buried and turned out to prevent badgers digging below the fence.
Compliance with British and European Standards
- BSEN 10218 – Steel Wire and Wire Products part 2 – General Wire Dimensions and Tolerances
- BSEN 10223 – Steel Wire and Wire Products for Fencing and Netting part 5 – Steel Wire Woven Hinged Joint and Knotted Mesh Fencing
- BSEN 10244 – Steel Wire and Wire Products Non-ferrous Metallic Coatings on Steel Wire part 2 – Zinc or Zinc Alloy Coatings (all Tornado products galvanised to class A)
